TOSMICRON-S4000IN

X-Ray Nondestructive Inspection Systems

TOSMICRON-S4090IN and TOSMICRON-S4130IN micro-focus X-ray inspection systems

tosicron-s4000
Applications Chip mounted boards, BGAs, electronic parts, devices, sensors, resins, etc.

Incorporating a micro-focus X-ray generator, the TOSMICRON-S4000IN series of high-performance X-ray fluoroscopic inspection systems delivers clear images.

FEATURES

High-performance X-ray generator

The TOSMICRON-S4000IN series incorporates a micro-focus sealed-tube X-ray generator. Select from 90-kV or 130-kV X-ray generators.

High-speed, high-precision sample table

With its highly rigid and accurate sample table, the TOSMICRON-S4000IN series is capable of high-speed and automatic table feeding as well as various dimensional measurements.

With large table option

The TOSMICRON-S4000IN series also comes with a large sample table of 600 × 350 mm.
The large sample table provides more inspection options, such as imaging large samples and continuous imaging of multiple products.

Outstanding operability

The TOSMICRON-S4000IN series supports table navigation, memory box, and many other functions.
The measurement functions are accessible via icons for ease of use.

IMAGE EXAMPLES

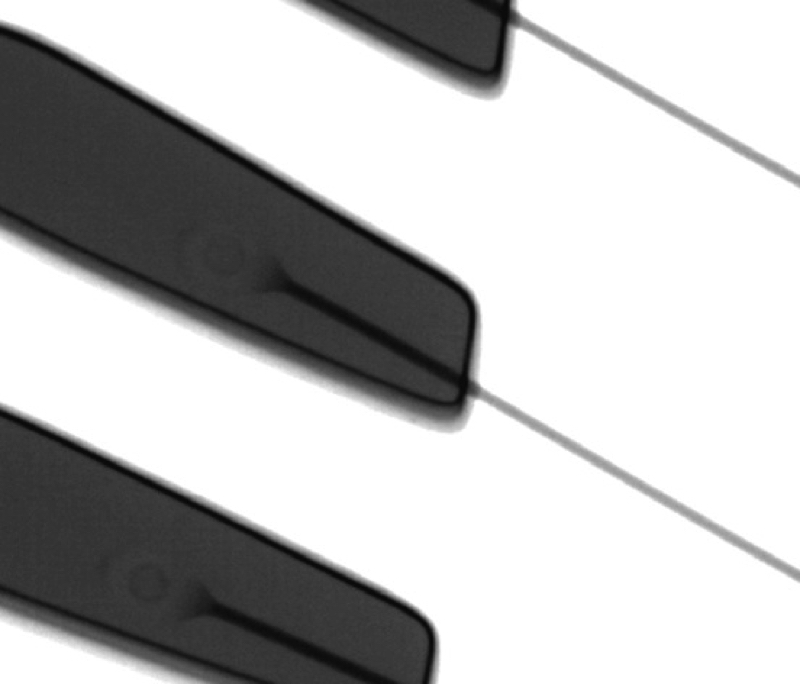

IC bonding wires

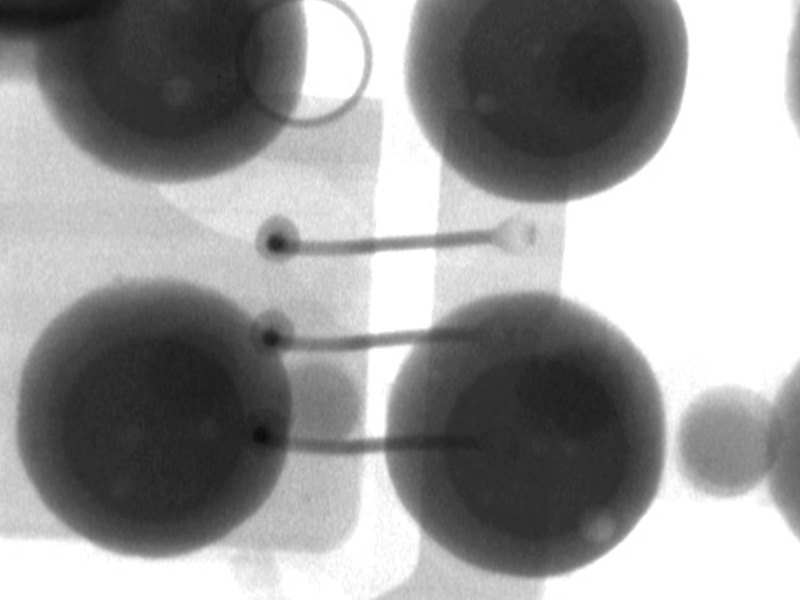

BGA

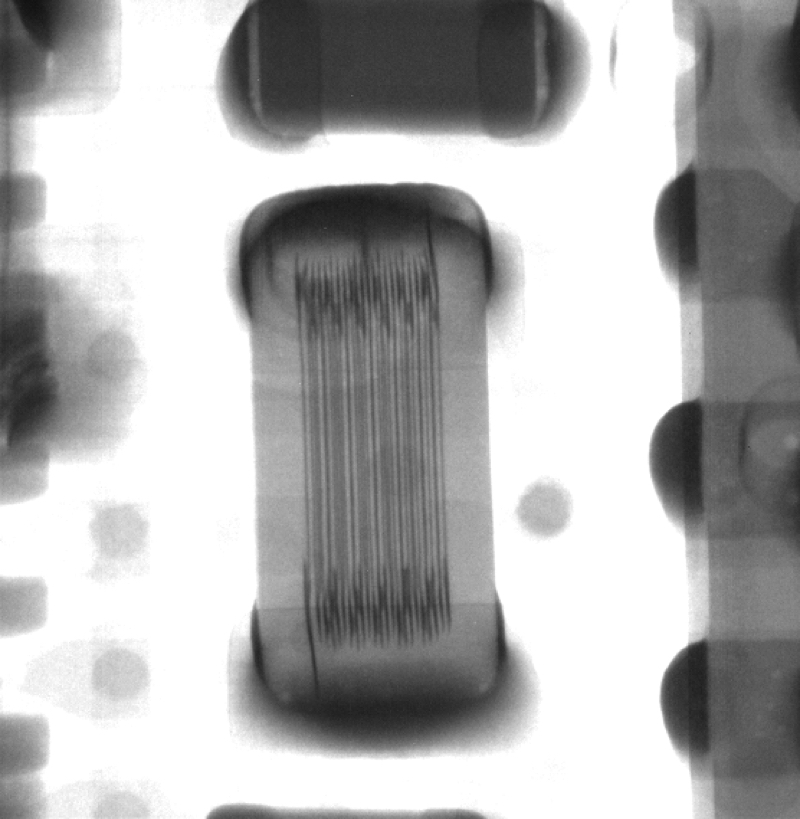

Chip capacitor

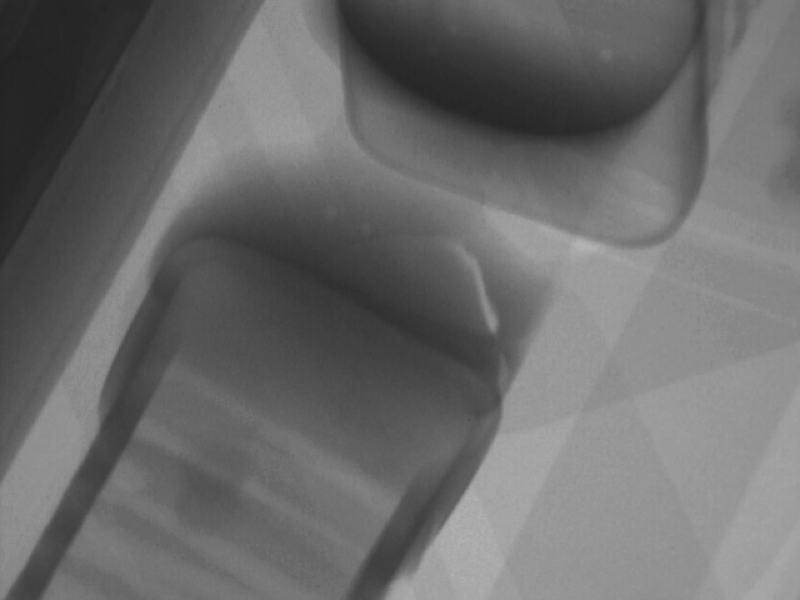

Solder crack

SPECIFICATION

You can scroll left and right.
Key Specifications
Model TOSMICRON-S4090IN TOSMICRON-S4130IN
X-ray generator 90kV 130kV
Focal point size 5μm
X-ray detector X-ray I.I. (4-inch / 2-inch)
Table size Standard table: 410×360 mm (effective imaging area: 350×300 mm)
Large table: 600×350 mm
Main unit external dimensions (W×D×H) 1150×1095×1790 mm

∗ X-ray I.I.: X-ray image intensifier

TOSMICRON-S4090IN
X-ray generator 90kV
Focal point size 5μm
X-ray detector X-ray I.I. (4-inch / 2-inch)
Table size Standard table: 410×360 mm (effective imaging area: 350×300 mm)
Large table: 600×350 mm
Main unit external dimensions (W×D×H) 1150×1095×1790 mm
TOSMICRON-S4130IN
X-ray generator 130kV
Focal point size 5μm
X-ray detector X-ray I.I. (4-inch / 2-inch)
Table size Standard table: 410×360 mm (effective imaging area: 350×300 mm)
Large table: 600×350 mm
Main unit external dimensions (W×D×H) 1150×1095×1790 mm

∗ X-ray I.I.: X-ray image intensifier
